Core Parameters

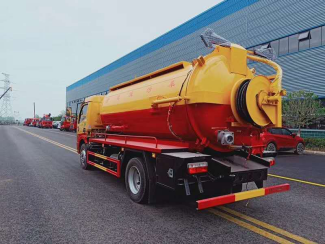

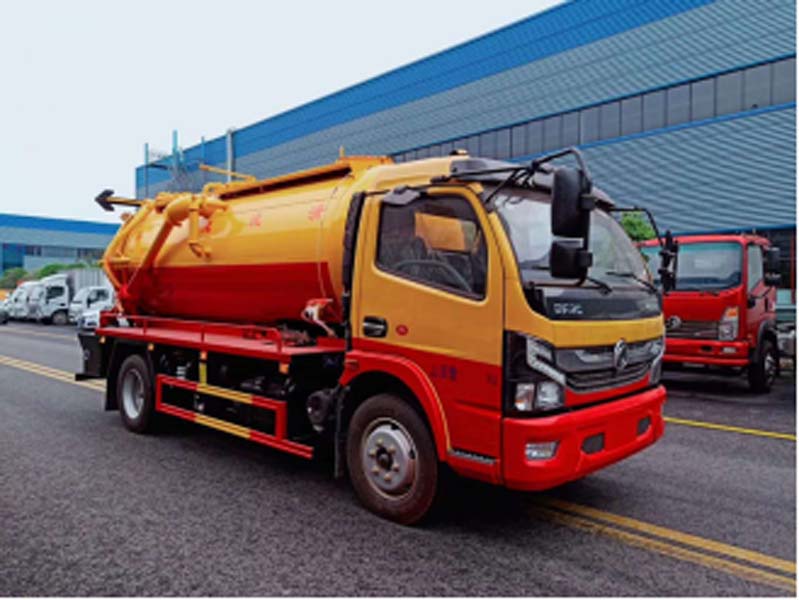

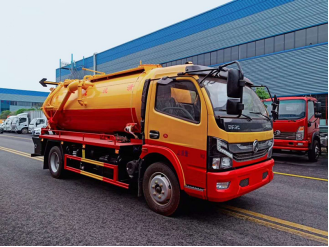

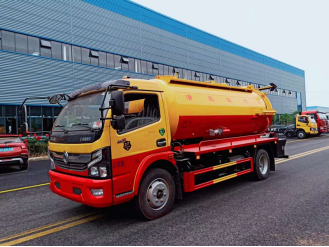

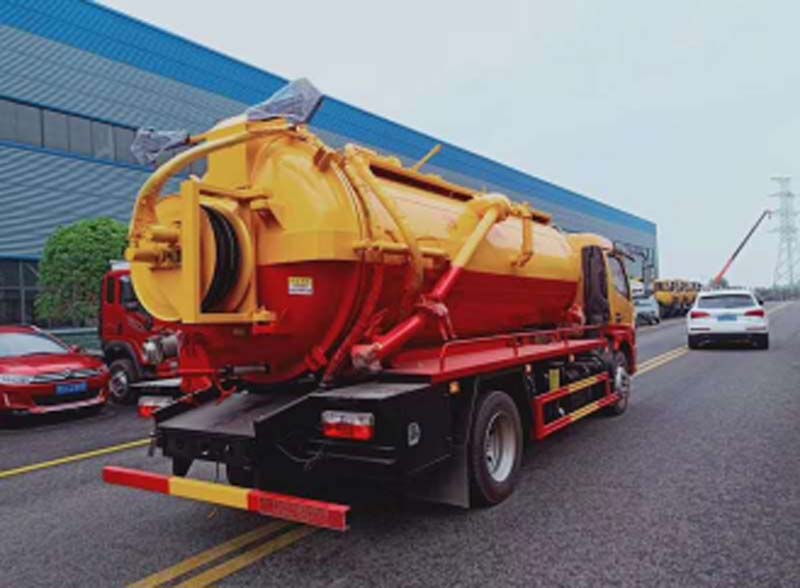

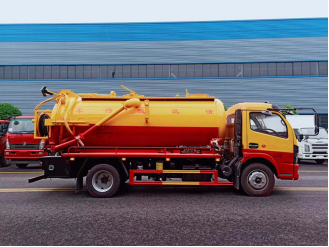

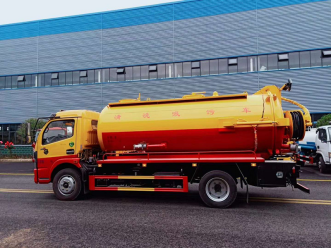

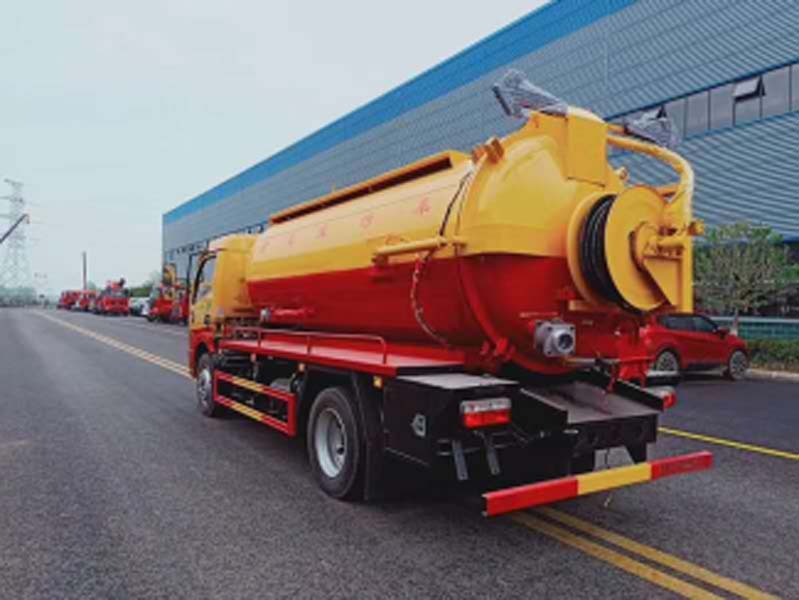

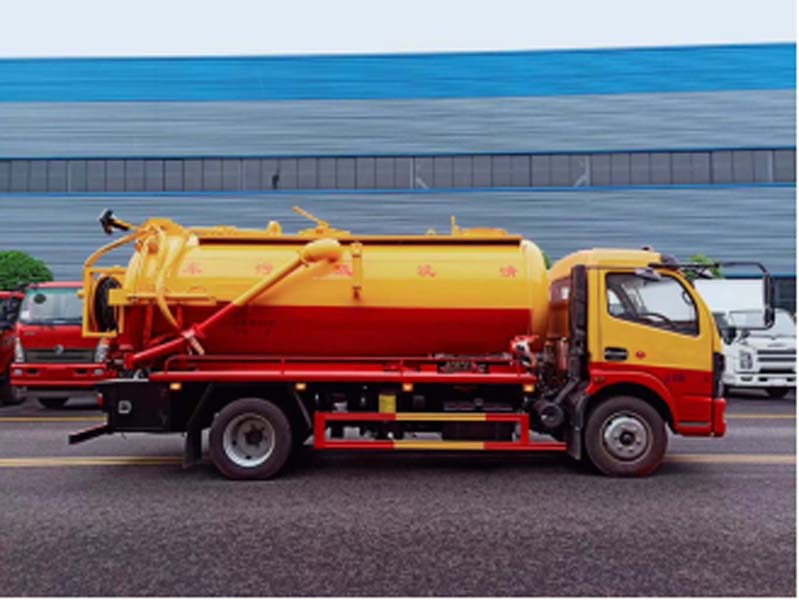

Product Name: Sewage Cleaning and Suction Truck

Brand: DONGFENG

Chassis Model: EQ1125SJ8CDC

Gross Vehicle Weight (GVW): 11995 kg

Curb Weight: 7050 kg

Rated Payload: 4750 kg

Overall Dimensions: 7280×2320×3050 mm (standard middle height)

Wheelbase: 3800 mm

Number of Tires: 6; Tire Specification: 245/70R19.5 / 8.25R20

Fuel Type: Diesel

Emission Standard: Available in Euro III/Euro IV/Euro V as required by destination countries

Drive Mode: 4×2

Seating Capacity of Cab: 3 persons

Total Tank Volume: Approx. 9.5 m³ (interconnected water and sewage tanks with flexible volume distribution)

Superstructure Parameters

Tank Material: The sewage tank is made of high-quality steel plates from Wuhan Iron and Steel with a wall thickness of 6mm. Reasonably designed anti-surge baffles are installed inside the tank.

High-pressure Pump: Pinff 215L, Working Pressure: 22 MPa

Vacuum Pump: SK-12 Water Circulation Type, Vertical Suction Lift: ≥8m

High-pressure Hose: Φ19×80m; Sewage Suction Hose: Φ100×8m

Standard Equipped Functions: Hydraulic Lifting, Rear Cover Opening, Interconnected Water and Sewage Tanks, Anti-overflow Valve, Air Blowdown (Anti-freezing), Vibration-resistant Pressure Gauge
