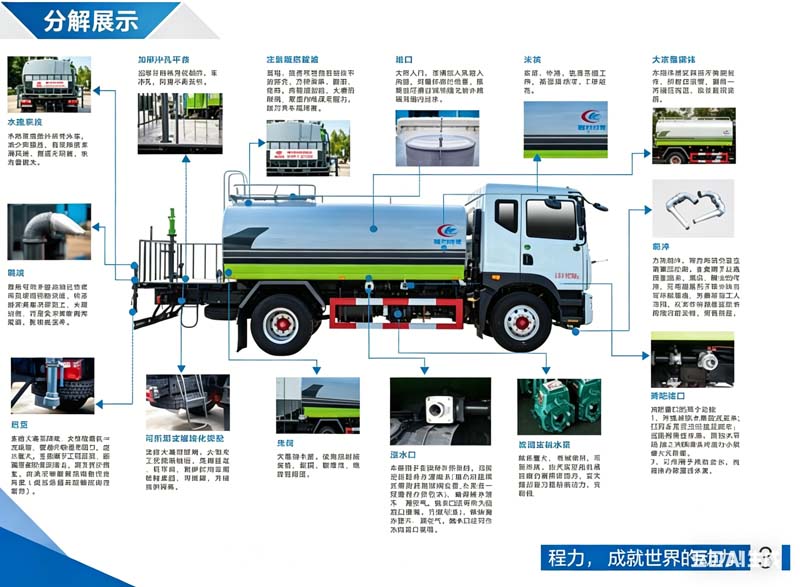

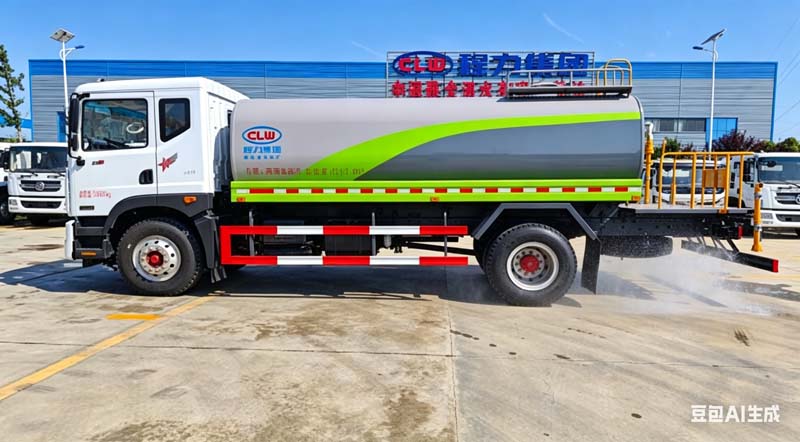

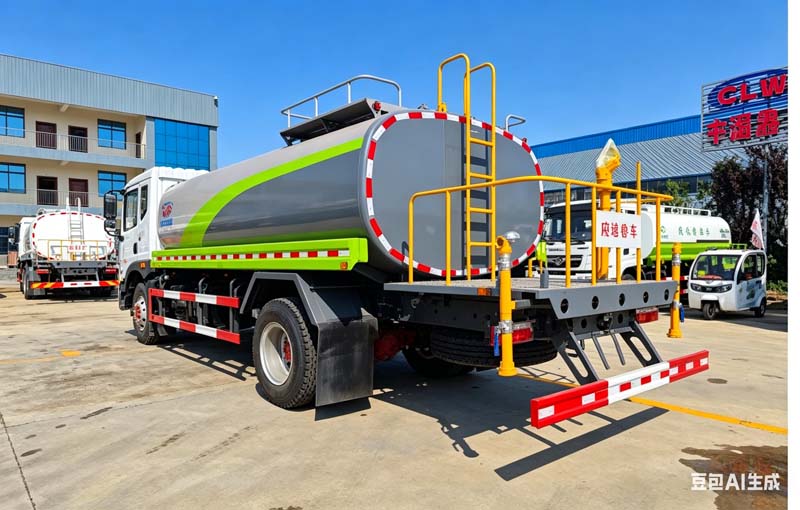

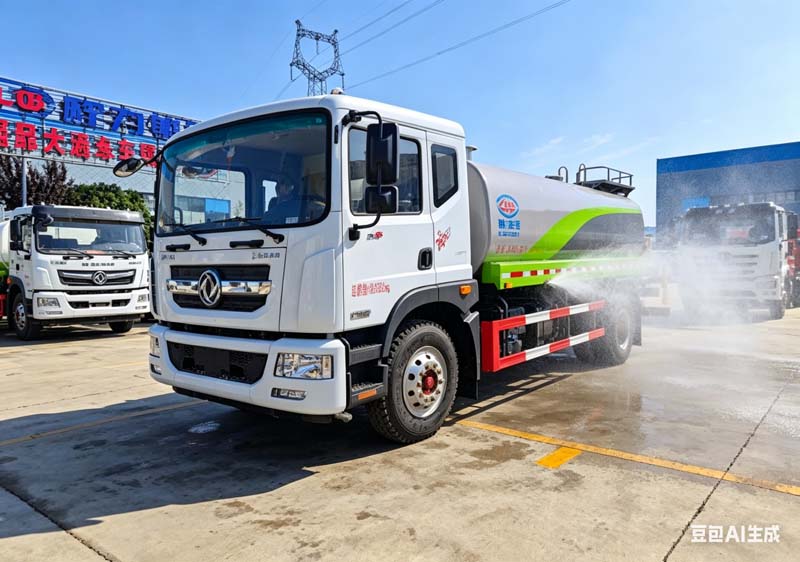

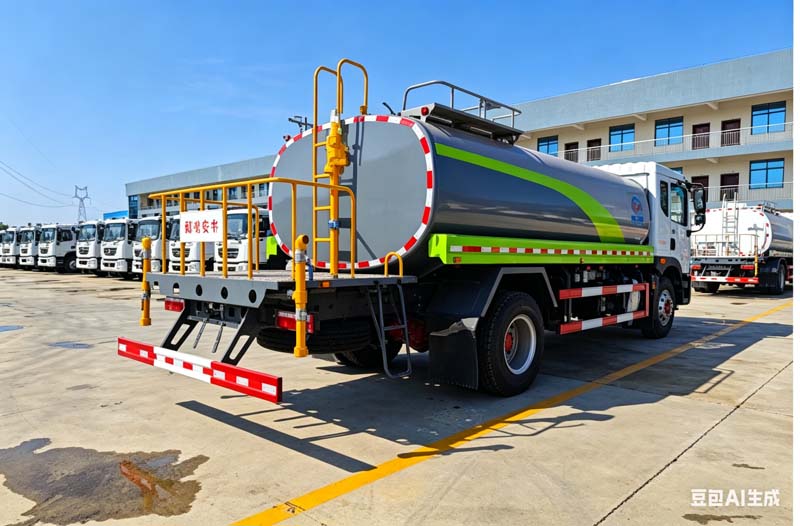

The tank of the 14.3m³ Dongfeng D9 water sprinkler is made of high-quality Q235 carbon steel, with a tank body thickness of 4mm, a head thickness of 5mm and a partition thickness of 3mm. It is equipped with a rear platform, ladder, galvanized steel pipes, as well as stainless steel large-diameter ball valves and domestic 50-50 water sprinkler pumps.
The vehicle is equipped with a new type of high-pressure water cannon, along with aluminum alloy elbows, tees, crosses, straight-through pipes, flanges and rear sprinkler extensions. Both the pump outlet and pump inlet are die-cast in one piece with a mold, featuring a seamless design to effectively avoid water leakage. The standardized design ensures good interchangeability, facilitating maintenance and parts replacement, and the aluminum alloy material makes it lighter, practical and aesthetic.
The truck has four functions: front flushing, rear sprinkling, side spraying and platform high-pressure water cannon. The spray shape of the high-pressure water cannon can be continuously adjusted (column, heavy rain, moderate rain, drizzle), with a column range of more than 30 meters. It is equipped with a high-power special self-priming and self-draining water sprinkler pump, fire ball valve interface, self-flow valve and filter screen. The vertical water absorption depth is ≥6 meters, the flushing width is ≥16 meters, the rear sprinkling width is ≥8 meters, the side spraying width is ≥10 meters, and the water cannon range is ≥30 meters.
