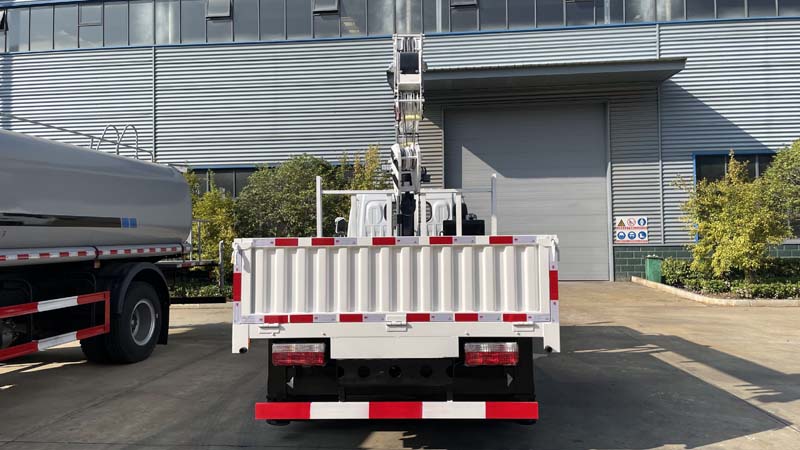

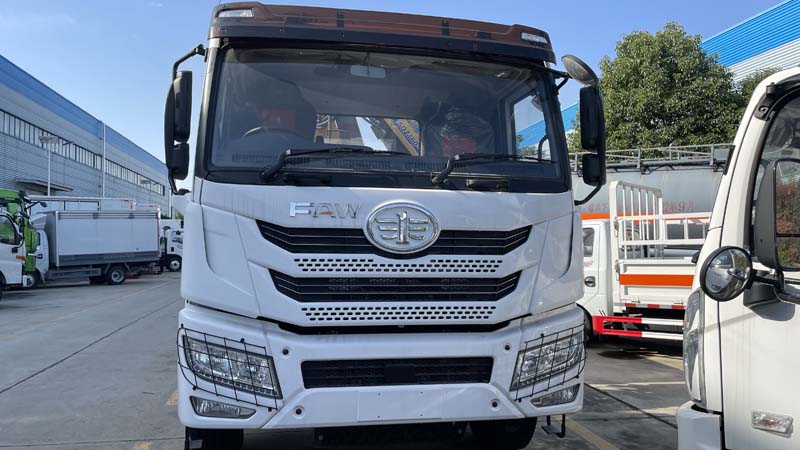

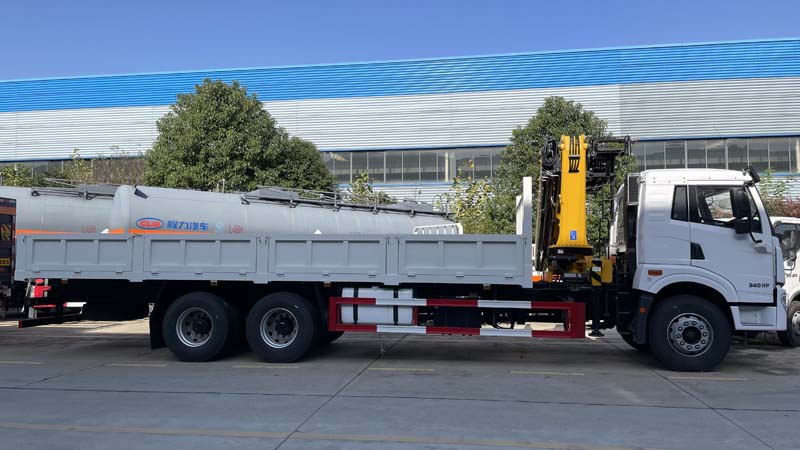

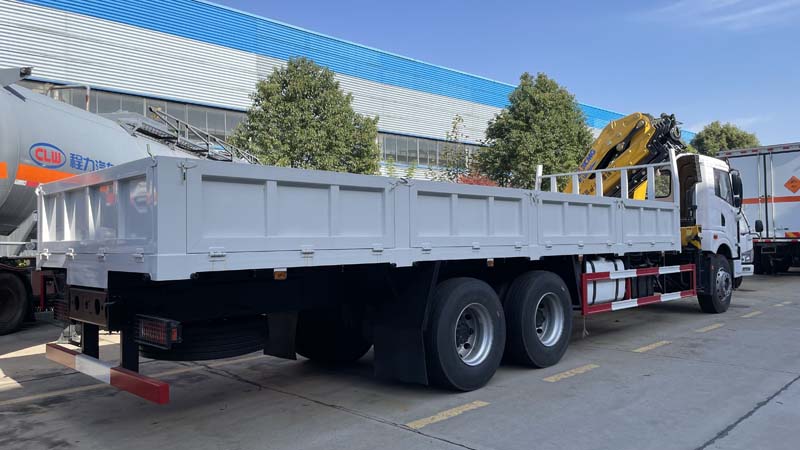

FAW 6×4 Knuckle‑Boom Truck‑Mounted Crane (Export Version)

Chassis

Drive: 6×4 heavy‑duty rear‑double‑axle, LHD/RHD optional

Engine: CA6DM2‑34E51, 340HP, Euro II‑V emission available

Transmission: 12‑speed manual with PTO

Wheelbase: 4300+1350mm

Tire: 12.00R20 steel tire

GVW: 25,000kg

Superstructure

Crane: 8‑12 ton knuckle‑boom crane, 360° full rotation, wireless remote control optional

Cargo box: 7800×2450×600mm, customizable, wear‑resistant Q345B steel

Hydraulic system: Stable performance for high‑temperature working conditions

Export Advantages

Heavy‑duty 6×4 design with strong loading capacity. Suitable for large‑scale construction and mining projects globally, easy maintenance and long service life.
