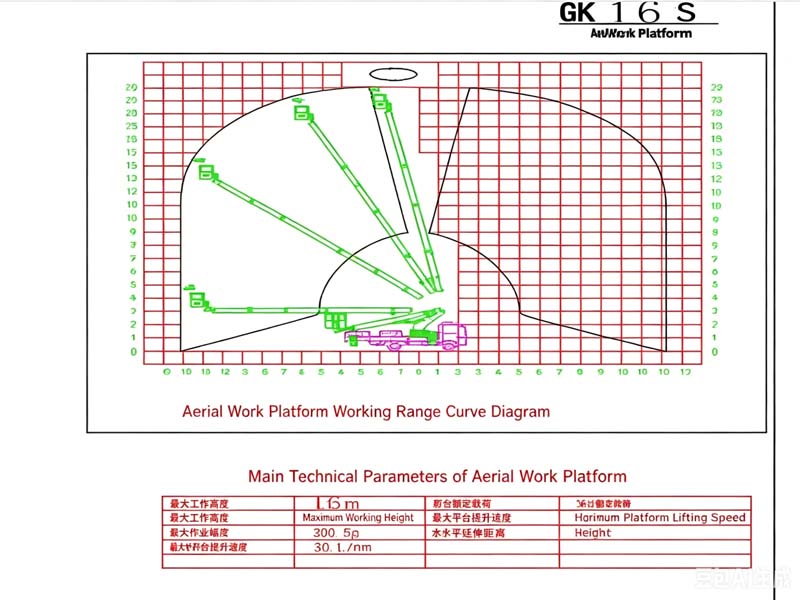

Max. Working Height: 16 m
Max. Working Radius: 10.5 m
Platform Rated Load: 250 kg

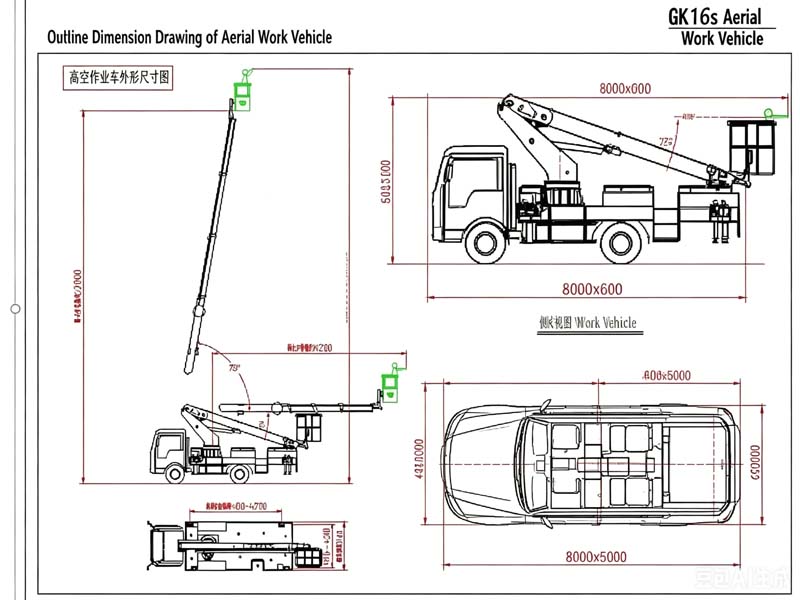

Outrigger Span: Transverse 4000 mm, Longitudinal 4000 mm
Rotation: 360° continuous rotation, hydraulic automatic leveling
Boom: 3-section hexagonal synchronous telescopic boom, compact structure, high working efficiency
Outriggers: Front V-type & rear H-type, individually adjustable, suitable for complex sites

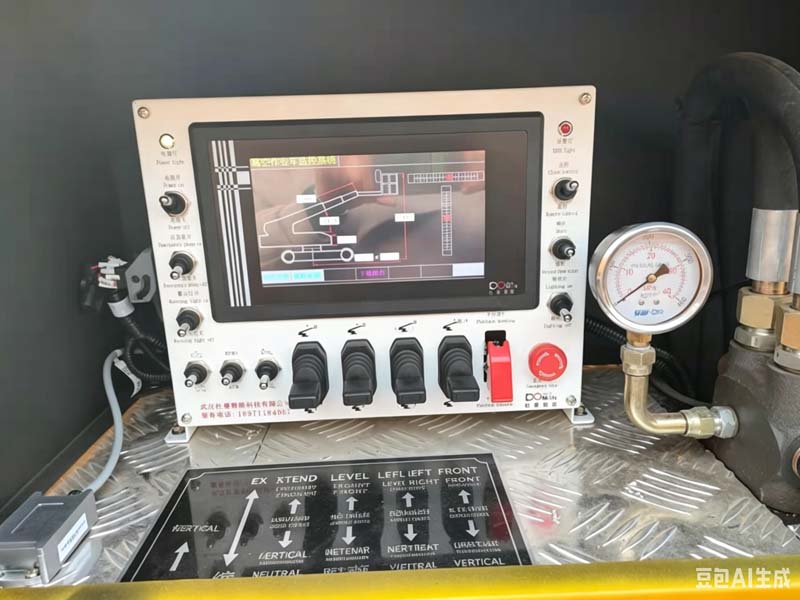

Control: Platform + ground dual remote control, electro-hydraulic proportional control, stepless speed regulation

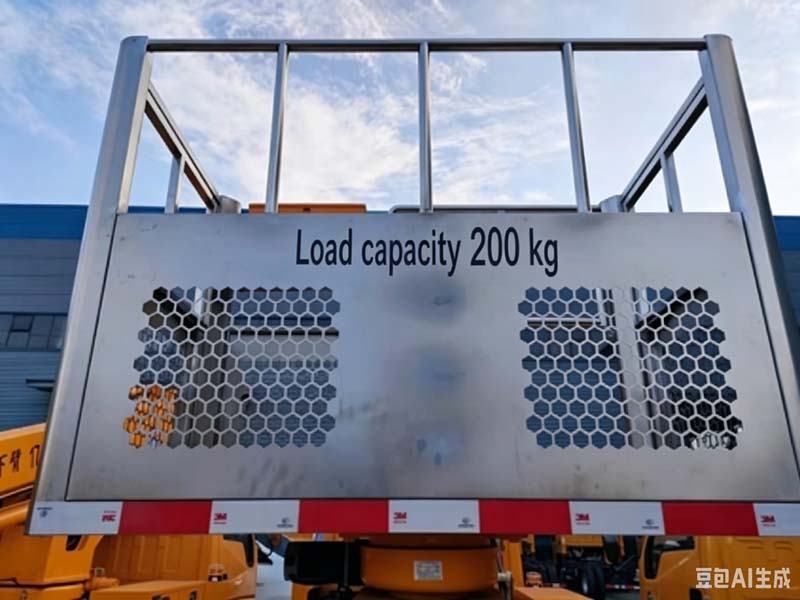

Platform: High-strength aluminum alloy, 360° rotatable
Safety Features

  • Automatic interlock between upper and lower vehicles to prevent misoperation

  • Real-time vehicle level monitoring with tilt alarm

  • Emergency electric pump for safe descent in case of failure

  • Emergency stop, wireless intercom, night warning lights

  • Imported hydraulic & electrical components for smooth movement and safety self-locking

Imported Key Components

  • Italy: Electro-hydraulic proportional valve, counterbalance valve, swing cylinder

  • Germany: CAN bus controller, emergency electric pump

  • USA: Hydraulic connectors

  • Japan: Proximity switch
