Core Parameters

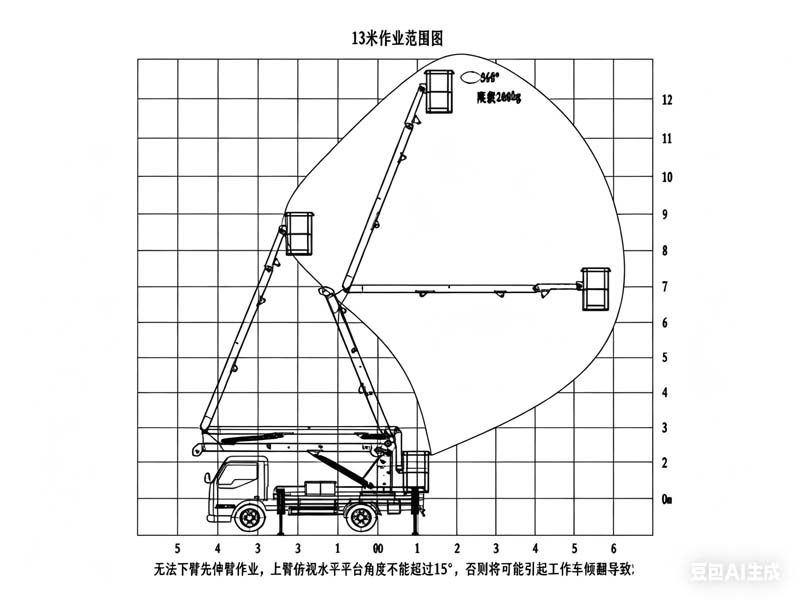

  • Maximum working height: 13 m

  • Maximum working radius: 5.6 m

  • Rated load of platform: 200 kg

  • Rotation range: 360° continuous rotation in both directions

  • Maximum lifting weight: 1 ton

  • Outrigger type: H‑type four outriggers with double‑acting hydraulic locks, operable individually or synchronously

  • Operation mode: Dual control platforms (upper & lower), electric + manual control, interlock between upper and lower mechanisms

  • Platform leveling: External pull‑rod mechanical leveling, stable and reliable

Structural & Safety Highlights

  • Boom and outriggers adopt Q345 high‑strength low‑alloy profile, seamless, high strength and stable stress

  • Slewing mechanism uses worm gear reducer with self‑lubrication and self‑locking function
