This is aprofessional monitoring ambulance converted from the Iveco Daily diesel chassis, fully compliant with China 6 emission standard. It adopts Iveco F1 series diesel engine, with a maximum speed of 130km/h, equipped with Bosch 9.0 ABS+EBD braking system, high-strength boron steel body and rigid integrated chassis, providing stable handling and high safety performance.
The vehicle has a gross weight of 4000kg, wheelbase 3300mm, and can carry 7 persons including the patient on stretcher. It offers 5-speed manual / 8-speed automatic transmission, front engine rear-wheel drive, and front and rear disc hydraulic braking system.

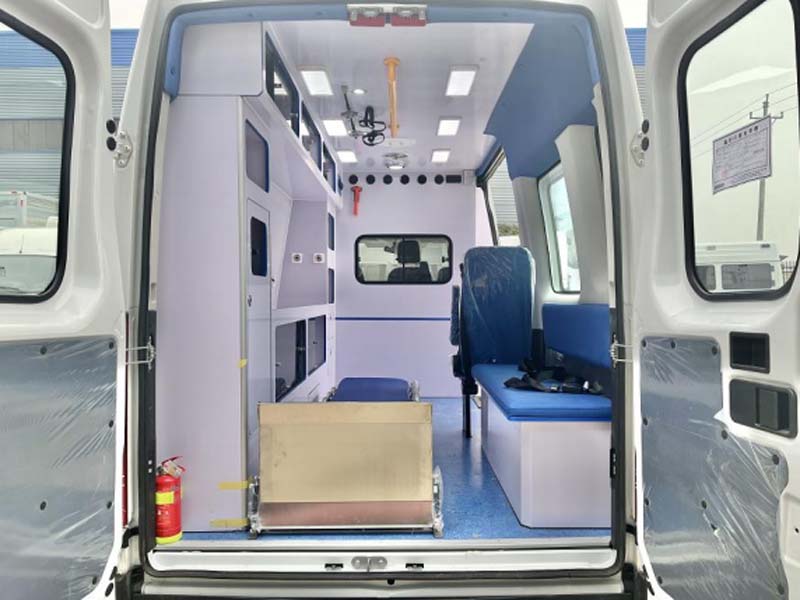

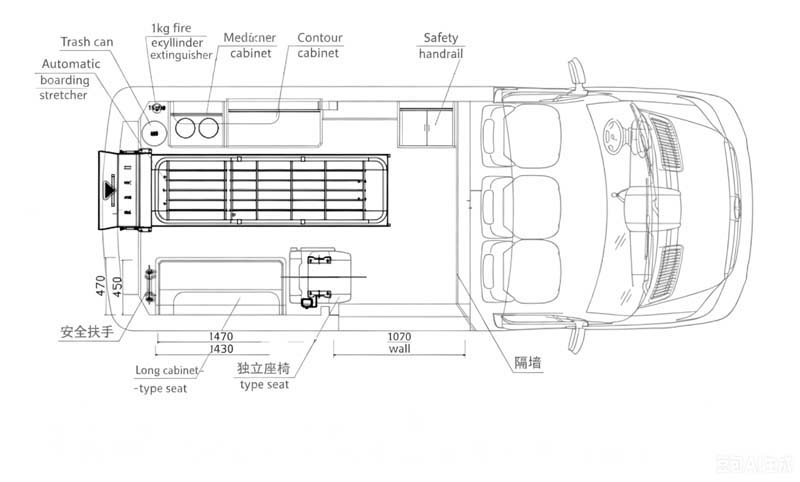

The medical compartment is designed with professional layout and complete equipment:
Rescue system: automatic loading stretcher, stretcher base, rail-type infusion stand
Oxygen supply: dual 10L oxygen cylinders, pressure regulators, oxygen inhaler, ventilator port
Electrical system: 1000W inverter, 220V/12V sockets, LED interior lights, infusion spotlights
Environment control: rear air conditioning & heater, roof ventilation fan, UV disinfection lamp

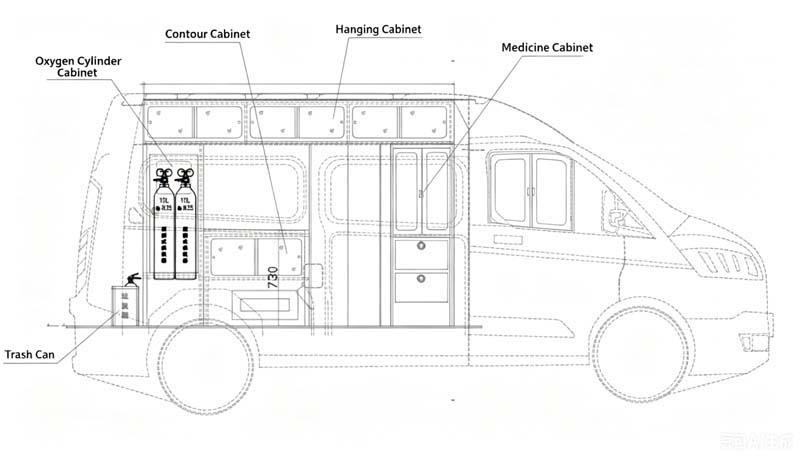

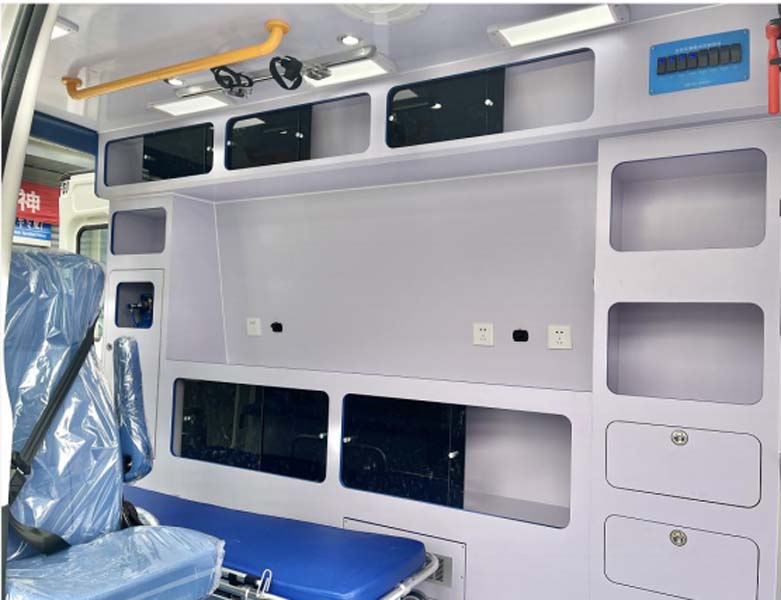

Interior & cabinets: lightweight eco-friendly materials, waterproof, antibacterial, easy-cleaning floor, equipment cabinet, oxygen cabinet, overhead cabinet, partition wall with observation window
Auxiliary safety: intercom, fire extinguisher, safety hammer, foot pedal waste bin, safety handrail
Externally, it is equipped with integrated LED warning light system, blue strobe lights, reflective ambulance markings, frosted privacy glass, sliding side door and double rear doors for convenient patient loading and unloading.
Optional equipment: negative pressure purification system, driving recorder, scoop stretcher, stair stretcher, side door step.
This model is widely used in hospital emergency centers, pre-hospital first aid, patient monitoring and inter-hospital transfer.
