This ambulance is professionally modified from the JMC Ford New Transit MWB Medium Roof gasoline chassis, fully compliant with China 6 emission standard. It is equipped with a 2.0L EcoBoost GTDI gasoline engine delivering 162KW power, with a top speed of 170km/h. Safety systems include Bosch ABS+EBD, high-strength boron steel body, integrated chassis, cruise control and reverse camera, ensuring stable and safe driving.
The vehicle has a gross weight of 3300kg, wheelbase 3300mm, and offers 6-speed manual or 9-speed automatic transmission. It can accommodate 7–8 occupants including the patient on stretcher.

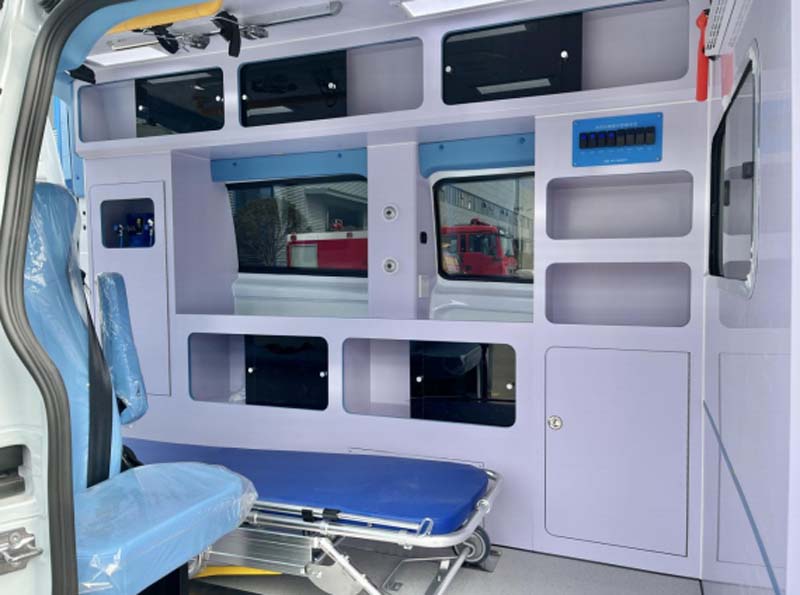

The medical cabin is well-equipped:
Emergency & rescue: automatic loading stretcher, aluminum alloy stretcher base, rail-type infusion stand
Oxygen supply: two 10L oxygen cylinders, pressure regulators, oxygen inhaler, ventilator port
Electrical system: 1000W inverter, 220V/12V sockets, LED cabin lights, infusion spotlights
Environment & disinfection: UV disinfection lamp, rear air conditioner & heater, roof ventilation fan

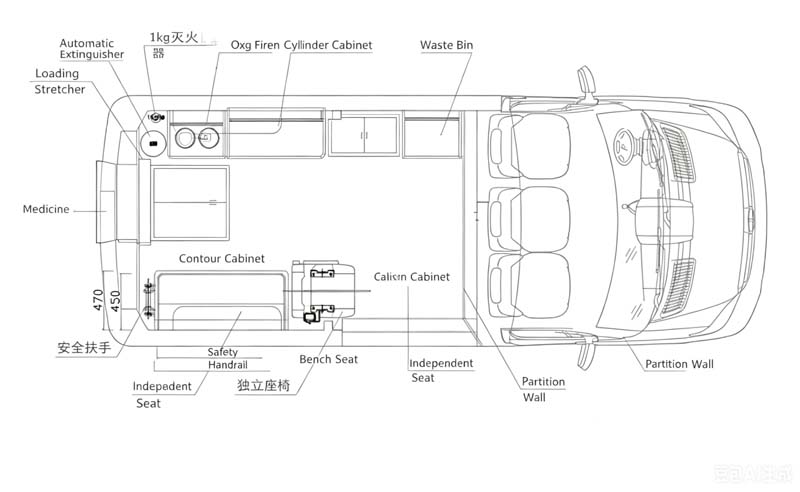

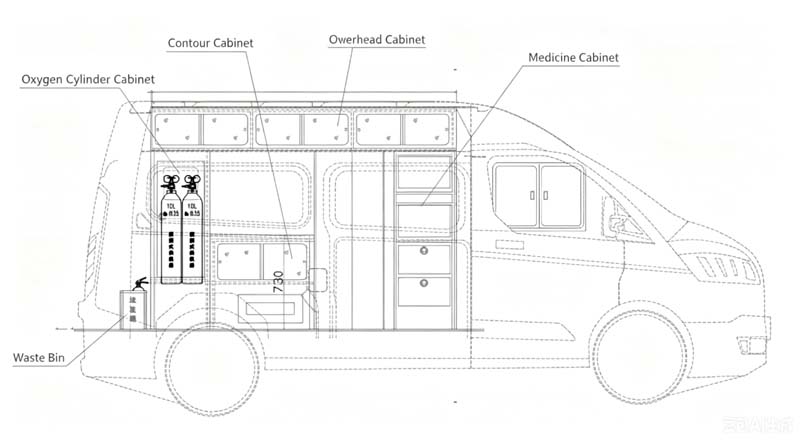

Storage & interior: equipment cabinets, oxygen bottle cabinet, overhead cabinet, antibacterial waterproof floor & interior
Auxiliary equipment: intercom, fire extinguisher, emergency hammer, foot pedal waste bin, safety handrail

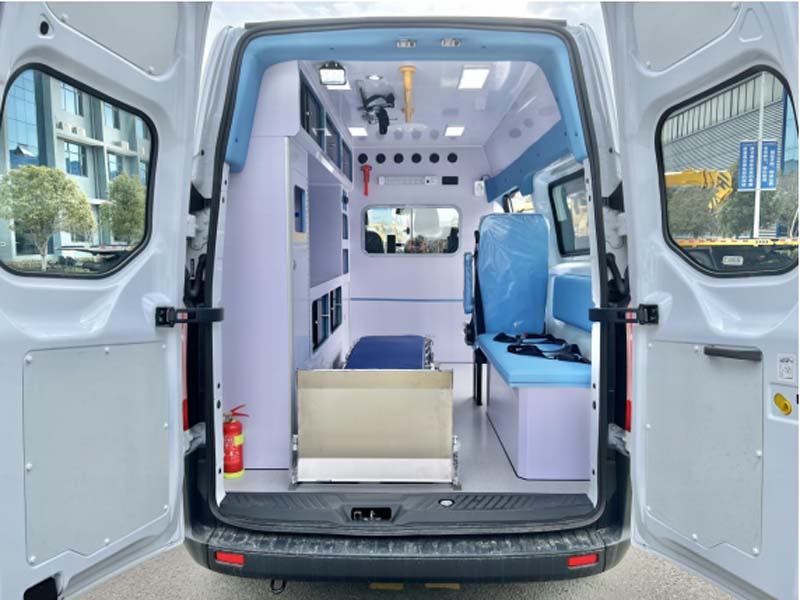

Externally it features a full LED warning light system, blue strobe lights, reflective markings, frosted privacy glass, right sliding door and double rear doors for easy patient loading.
Optional equipment: negative pressure system, driving recorder, scoop stretcher, stair stretcher, door steps.
It is widely used for pre-hospital emergency care, on-site monitoring, inter-hospital transfer and urban first aid.
