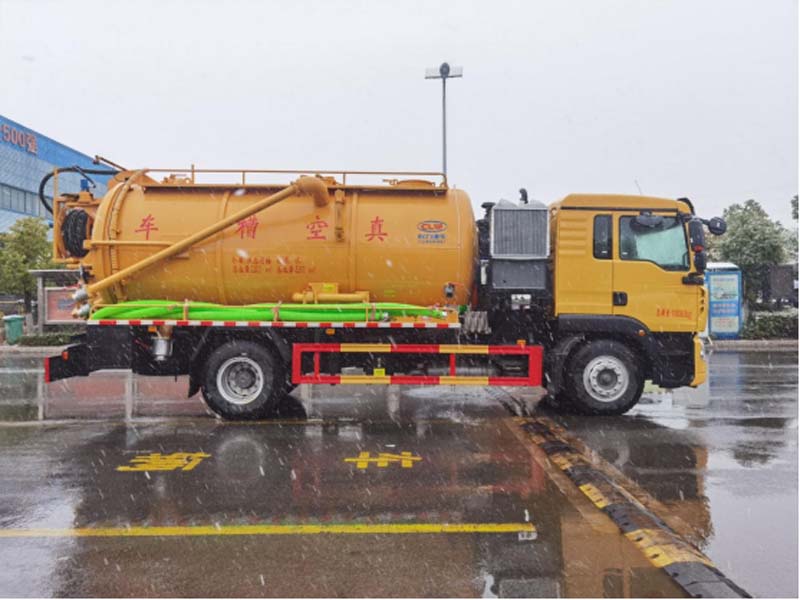

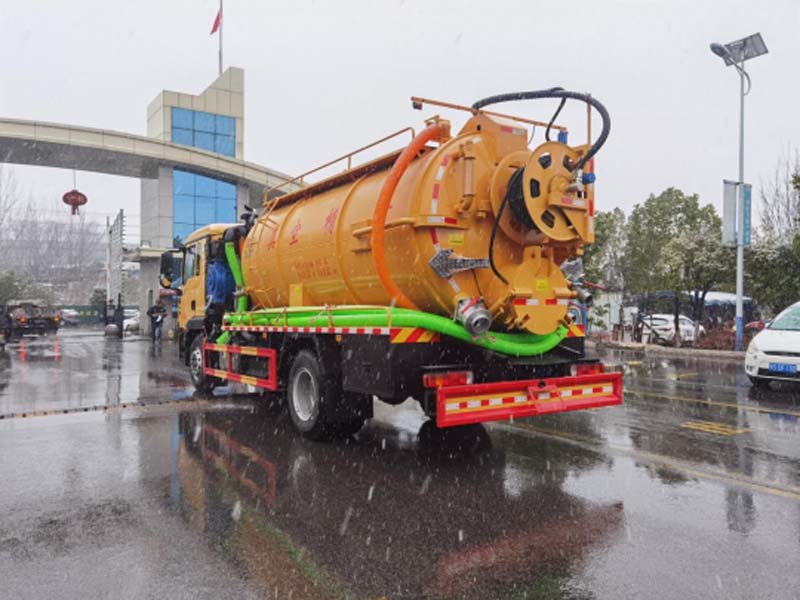

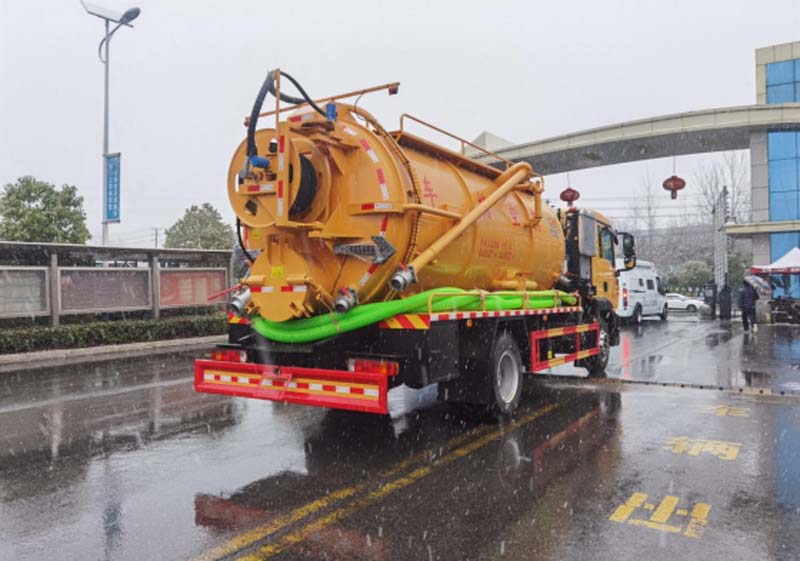

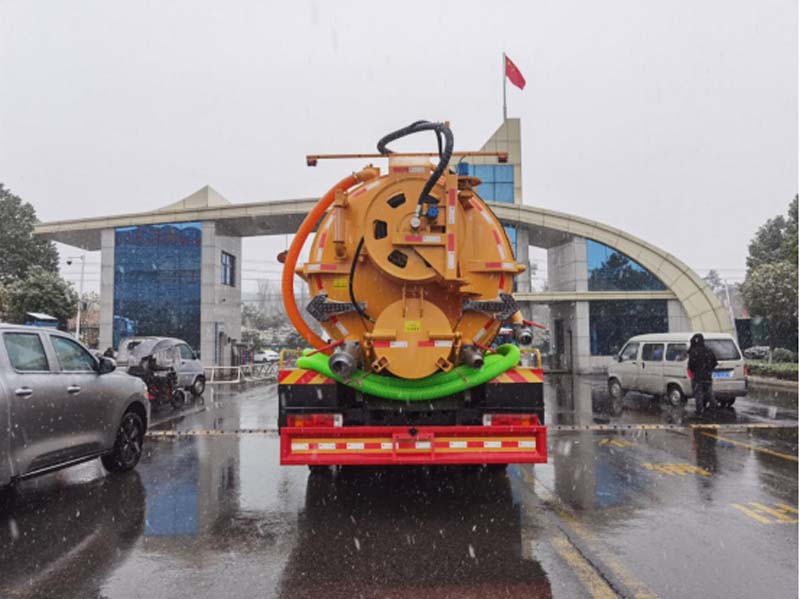

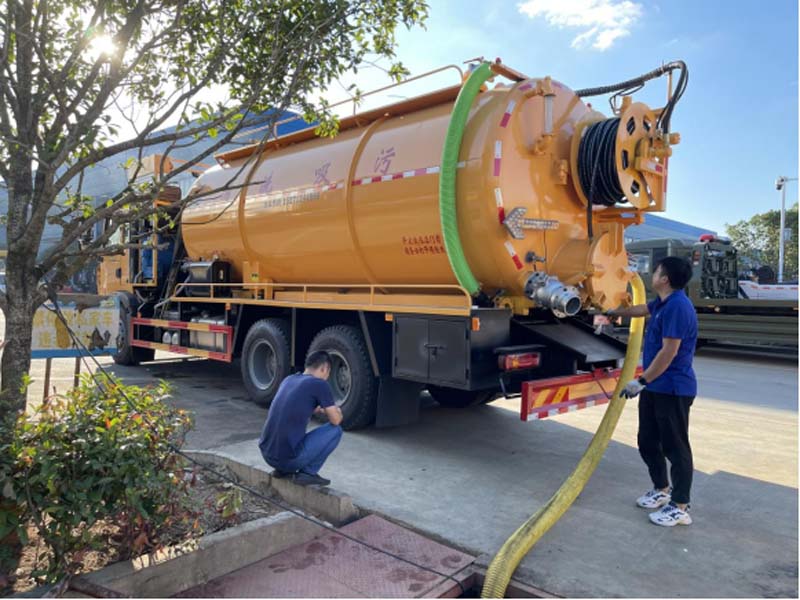

Product Name: Sewer Cleaning & Suction Truck

Brand: SINOTRUK HOWO

Gross Vehicle Weight (GVW): 18000kg

Curb Weight: 12450kg

Rated Payload: 5420kg/5355kg

Overall Dimensions: 9100×2550×3650mm

Wheelbase: 4700mm

Drive Type: 4×2

Tire Specification: 10.00R20 / 295/80R22.5

Fuel Type: Diesel

Emission Standard: Customizable Euro III/IV/V

Total Tank Volume: 15m³ (Clean Water: 5m³ + Sewage: 10m³)

Chassis Parameters

Engine: MAN Technology, 258HP

Gearbox: 8-speed (With Power Take-off)

Standard Configuration: Air Conditioner, Power Steering, Central Lock, Electric Windows, ABS

Superstructure Parameters

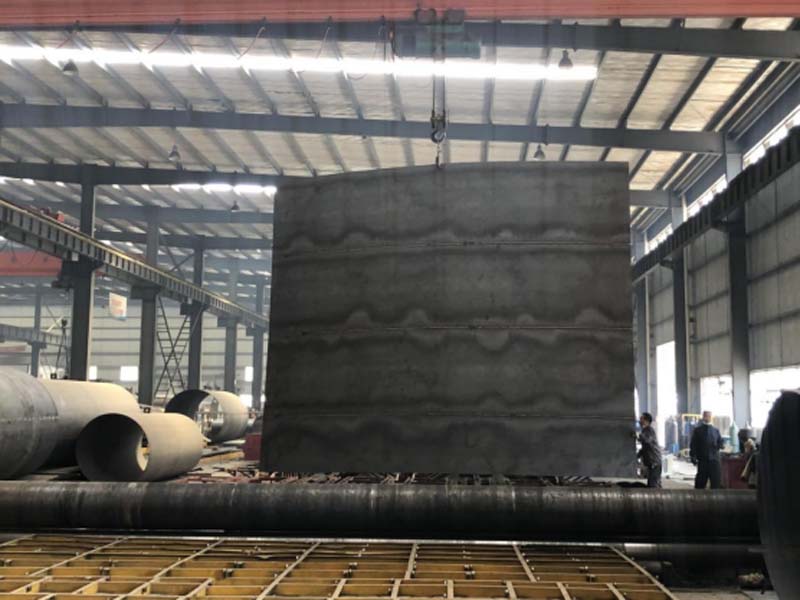

Tank Body: Q235 Carbon Steel, 8mm Thickness, Hydraulic Lifting + 600mm Hydraulic Drainage Door

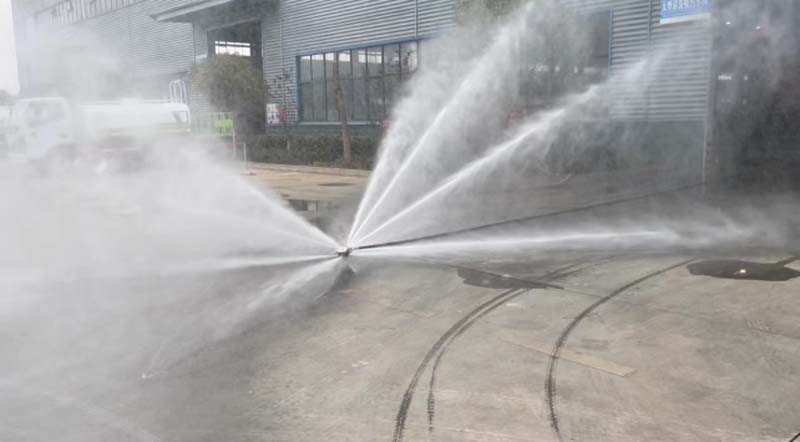

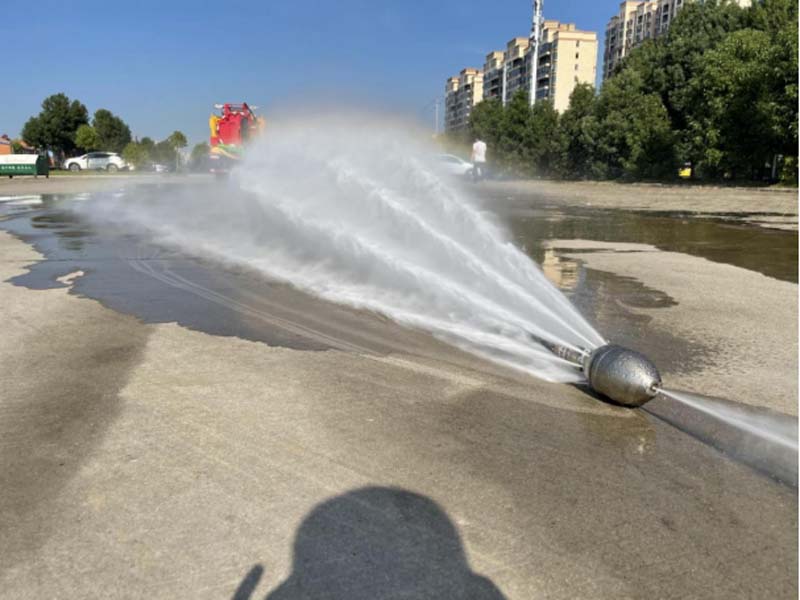

High Pressure Pump: German PINFL 350L, 22MPa, Equipped with 60m High Pressure Hose and Hydraulic Hose Reel

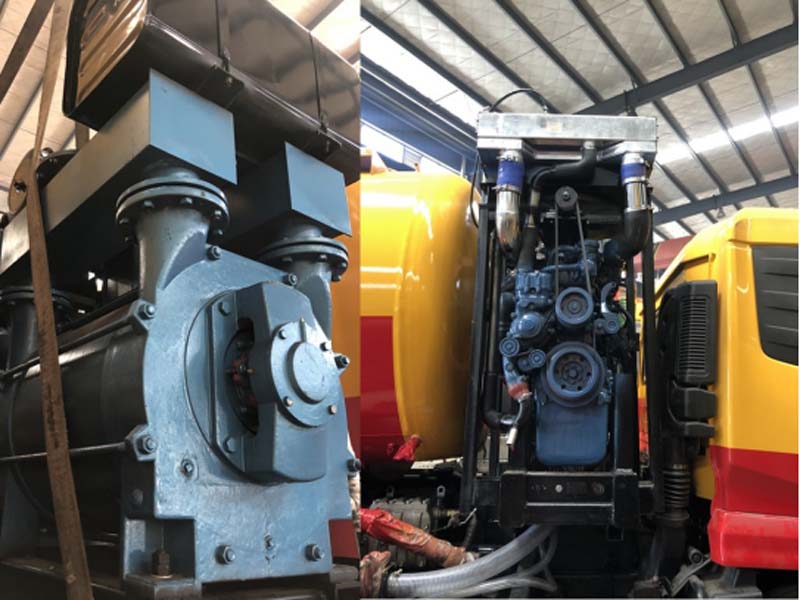

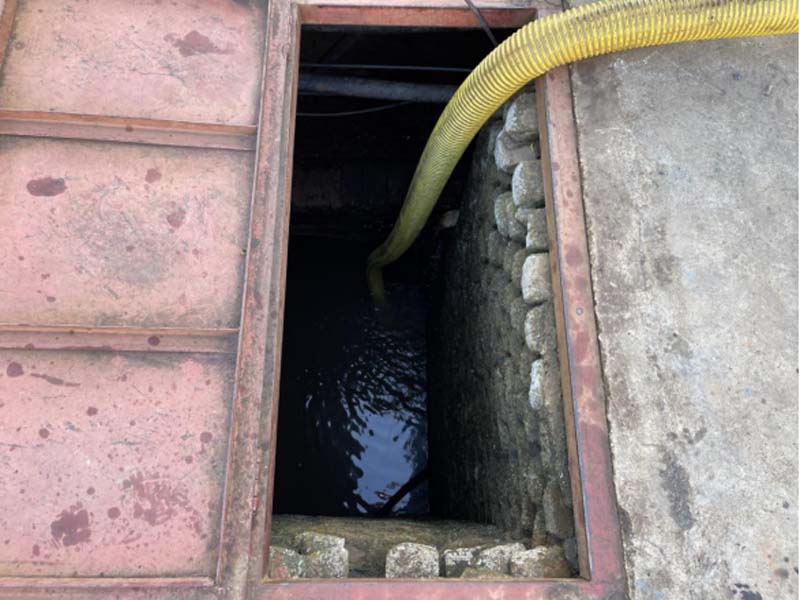

Sewage Suction System: Optional Weichai 375HP Auxiliary Engine + SK-30 Water Circulation Pump, Vertical Suction Depth ≤10m, Horizontal Suction Distance: 50-100m

Standard Configuration: Water-sewage Intercommunication, Fire Water Inlet, Air-blast Anti-freezing, Overflow Prevention Valve, Shock-resistant Pressure Gauge
