Chassis Configuration:
Engine: Cummins, 230/245 horsepower; Euro III and Euro V emission standards available for customization
Transmission: Dongfeng 8-speed gearbox
Tires: 10.00R20 18PR steel wire tires with standard ABS equipped
Drive Type: 4×2
Gross Vehicle Weight: 18000kg
Rated Payload: 8605–9070kg
Wheelbase: 4500–4700mm
Cab: Left-hand drive or right-hand drive customizable
Key Superstructure Parameters
Effective Volume: 10–12 cubic meters

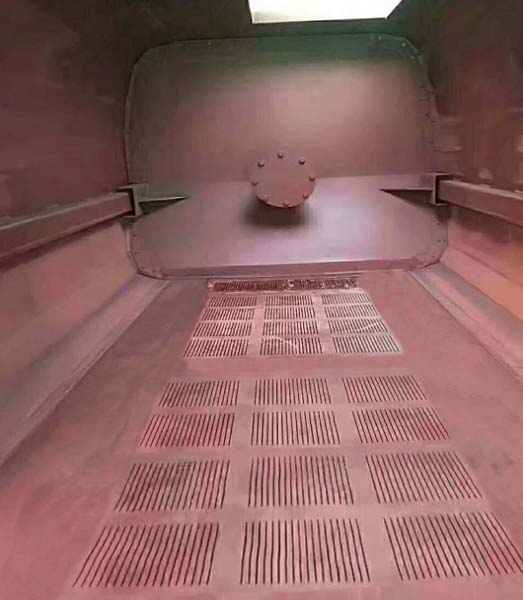

Tank Material: 4mm manganese steel for side panels and 5mm manganese steel for base plate (stainless steel as optional alternative)
Discharging Mode: Pusher discharge; optional tipper unloading via tank lifting and sealed discharging
Functions: Dry-wet separation, hydraulically operated rear cover with sealing strips, hydraulic locking for rear door
Lifting Mechanism: Chain-driven design, compatible with standard 120/240L waste bins
Control System: In-cabin electric control plus external manual control with misoperation prevention function
Standard Equipment: On-board high-pressure cleaning system with water tank
Hydraulic System: Brand-name oil pump and multi-way valve with maximum working pressure of 16MPa
Optional Configurations
Sealed discharging, tank heating, electric heating, electronic weighing system, tank lifting tipper unloading
Product Advantages
Excellent leak-proof sealing, anti-corrosion and durable structure, high operation efficiency and easy maintenance; applicable to standardized collection and transportation of municipal sanitation waste and kitchen waste.
